Terry Lifts

Harmony

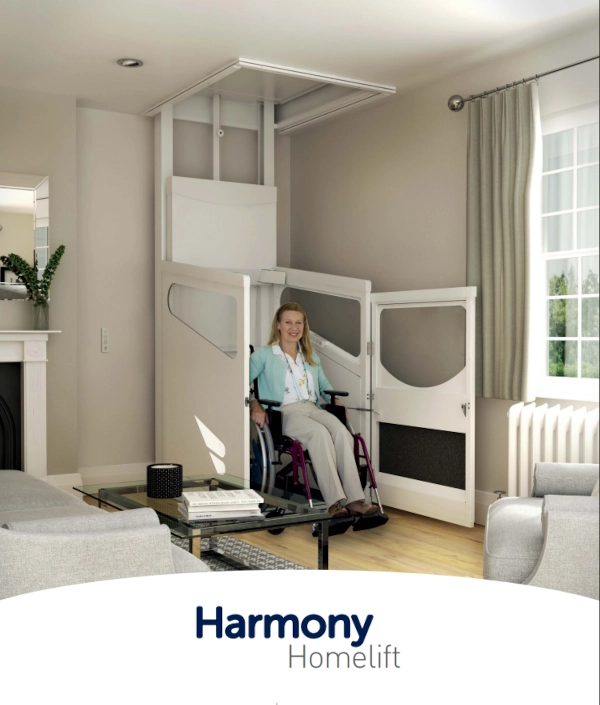

The Harmony Wheelchair Through Floor Lift by Terry Lifts is a practical and sleek home lift that allows you to move freely between floors, safely, smoothly and quietly.

It is suitable for those who travel seated in a wheelchair or on the optional fold-down seat.

The lift is available in a wide range of sizes, each designed to maximize space inside the cabin.

With no lift shaft required, the Harmony home lift can be fitted almost anywhere in your home.

It requires only minimal headroom on the first floor and it can be installed against non-load bearing walls.

Jump to...

Product Details

Overview

The Harmony Wheelchair Through Floor Lift by Terry Lifts is a practical and sleek home lift that allows you to move freely between floors, safely, smoothly and quietly. It is suitable for those who travel seated in a wheelchair or on the optional fold-down seat. The lift is available in a wide range of sizes, each designed to maximize space inside the cabin. With no lift shaft required, the Harmony home lift can be fitted almost anywhere in your home. It requires only minimal headroom on the first floor and it can be installed against non-load bearing walls.

Easy of Installation

The installation of this through floor lift is as straightforward as they come. Anglian Lifts engineers are trained by Terry Lifts. The necessary preparatory work will be undertaken and then the lift fitted in less than two days. The Terry Lifts Harmony Home Lift has an ingenious car design which includes an integral ramp so that this wheelchair lift is only fractionally larger on the outside than it is on the inside.

Safety

Pressure sensitive safety surfaces stop the lift if it gets obstructed from above or below. The lift also features a battery back-up system, allowing you to return to the ground floor safely in the event of a power failure without the need for laborious hand-winding.

  • Pressure sensitive surfaces and safe edges
  • Emergency lowering in case of power cuts and easy to use
    manual lowering
  • 30-minute fire and smoke integrity maintained between floors
  • Smoke or heat alarms provided on both floors

Key Features

  • Size, design and accessory options tailored to you
  • Radio wireless controls in car and at both doors
  • Safety glass vision panels
  • Safe edges and a pressure-sensitive safety surface stop the lift from moving if obstructed
  • Battery back-up for emergency lowering
  • Powered door available on wheelchair models
  • Low cabin floor profile makes for easy wheelchair access
  • 30 minute fire/smoke integrity
  • Easy to Install

Optional Extras

  • A range of trim and carpet colours
  • Special colours and vinyl wraps
  • Folding seat (can be used as a
    perch seat)
  • Perch seat
  • Telephone in the cabin
  • Hand held remote control
  • Grab handles
  • Joystick control
  • Cabin padding on three sides and
    door
  • Mirror
  • Fob
  • Cabin side lighting
  • Extended warranty

About Terry Lifts

Terry Lifts has been providing lift solutions for over 50 years, helping thousands of people around the world to overcome barriers and improve their quality of life.

Their home lifts are designed and manufactured at their headquarters in Cheshire, UK.

They offer a wide range of lifts, including through floor lifts, platform lifts, step lifts, home elevators, and portable wheelchair lifts.

Specification

Lift Size:

Available in four sizes: (external dimensions)

Harmony S – 920 (w) x 1265 (l)

Harmony LW – 1055 (w) x 1465 (l)

Number of Floors/Travel

Minimum 2060mm. Maximum 3600mm.

Usage & Suitability:

For internal domestic use. Suitable for all access requirements.

Technical Compliance:

30 minute fire protection to the requirements of BS 5900:2012.

Compliant with Machinery Directive 2006/42/EC and CIBSE Guide D recommendations.

Load Capacity

Dependent on model selected – 250kg (39 stone) to 280kg (44 stone)

Installation

Two days

Operation

One-touch, easy to use adjustable wireless cabin and wall-mounted controls

Power Supply

240v dedicated power supply, with full battery backup

Drive System

Hydraulic drive system

Speed

0.06 m/sec

Warranty

12 months warranty

Terry Lifts Harmony dimensions diagram
